Appearance
Color- Transparent
  • Transparent
  • Gary_GE001
  • gray02
  • rice
  • Cream
  • Pearl
  • Dark brown_BZ001
  • Dark brown_BZ002
  • Dark brown_BZ003
  • White
  • Burgundy
  • Green
  • Silver
  • Blue
Check out our complete catalog

Looking for other profile? Please contact us for custom profile build.

Overview

Polycarbonate corrugated sheet is a high polymer with superior impact resistance, transparency and light transmission. Its excellent mechanical, thermal and electrical properties make it an outstanding material for polycarbonate roofing and polycarbonate skylight in a wide range of construction, architecture, agriculture, DIY project or any application designed to improve daylighting.

Aesthetics

Polycarbonate corrugated sheet and polycarbonate roofing or polycarbonate skylight are essential in the buildings. Lyon Plastic as a professional corrugated sheet and polycarbonate corrugated sheet supplier combines esthetics and functions and makes customization available for perfect coordination with the building materials besides the esthetic and durable attributes brought by extrusive surface on the coating of UV absorbers and precise sizes of waves.

Main Benefits

Impact resistance: virtually unbreakable
Transparent: up to 92% LT
Weather and UV resistant
Wide service temperature range
High flammability rating

UV Protection

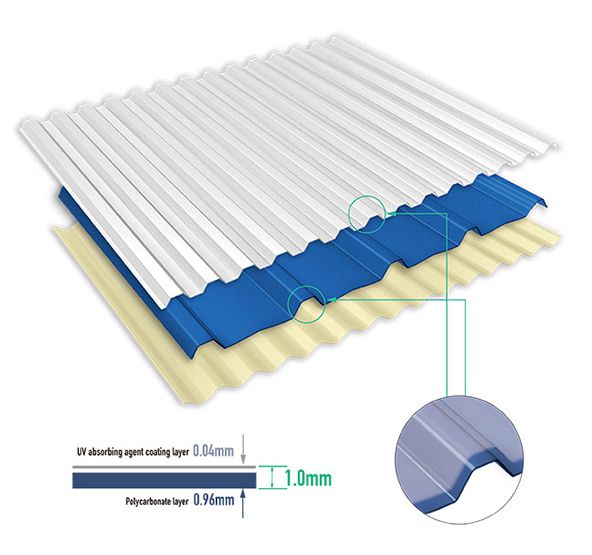

By using high density UV-absorbing agent in thickness of 0.04mm which is evenly coated on the surface of polycarbonate corrugated sheet via co-extrusion process, our polycarbonate corrugated sheet has been stabilized to avoid yellowing, particularly in the range of UV wave length of 290nm~400nm, while less than 2.4% UV ray penetrability within wave length 300nm. Thus the polycarbonate corrugated sheet always remain fresh and is capable of screening off the UV ray within 400nm harmful to human health.

Specification
NO. Profile Thickness
(mm)
Pitch
(mm)
Depth
(mm)
Width
(mm)
Effective Width (mm)
L1 0.8 ~ 2.0 190 26 820 760
LIGH TRANSMITTANCE
Color Color Code Light Transmittance Diffusion Parallet Light Transmittance Haze
Clear CL001 91.67% 0.74% 88.93% 0.83%
Bronze BZ001 36.69% 1.41% 35.28% 3.85%
Bronze BZ002 37.75% 1.11% 36.64% 2.94%
Bronze BZ003 N/A N/A N/A N/A
Grey GE001 40.29% 1.41% 38.89% 3.49%
Grey GE002 13.94% 0.12% 13.81% 0.89%
Grey GE003 19.98% 0.66% 19.31% 3.32%
Opal OP001 44.17% 43.86% 0.3% 99.32%
Green GR001 53.61% 2.19% 51.43% 4.08%
Blue BL001 25.2% 2.17% 23.03% 8.61%
Pearl PR001 25.55% 25.27% 0.28% 98.92%
Sliver SL001 13.65% 11.01% 2.64% 80.68%
Cream CM001 30.69% 30.46% 0.23% 99.25%
Claret CT001 N/A N/A N/A N/A
Soft White/Diffused WD001 89.01% 72.89% 0.68% 97.92%
Clear/Embossed CL001 89.66% N/A N/A 84.11%
APPLICATION

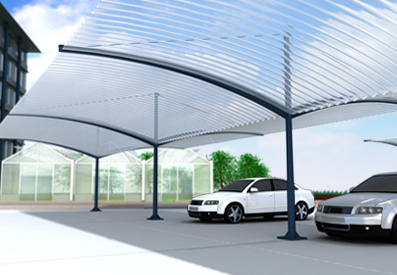

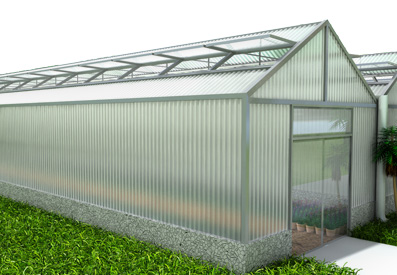

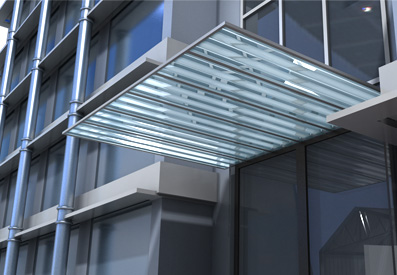

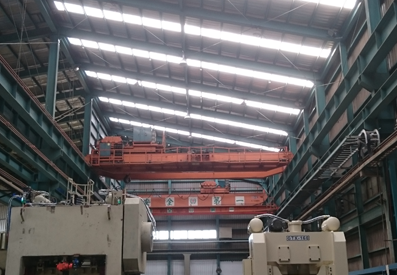

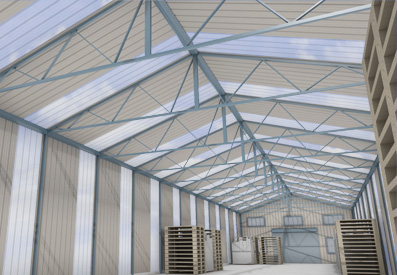

  • Uses: Industrial Roofing, Canopies, Dormers, Polycarbonate Skylight and Polycarbonate Roofing
